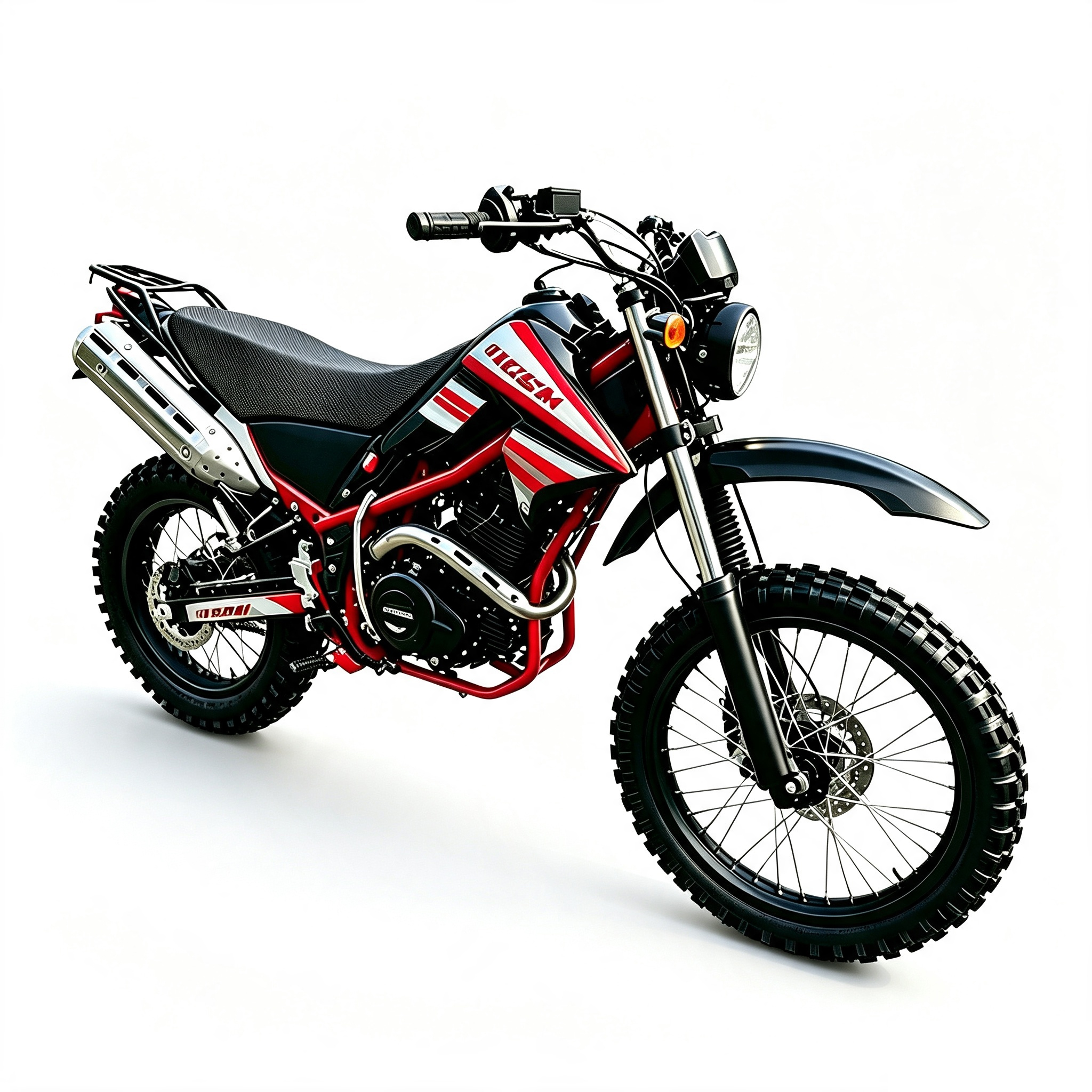

10325 Magician off-road motorcycle
OverView
Engine: 250/300CC air-cooled / four-stroke
Maximum horsepower: 17.5PS at 7,500RPM (12.6PS at 8,000RPM)
Maximum torque: 18N.M/7000R/MIN (11N.M/7000)
Starting method: Electric/kick start
Fuel supply system: Carburetor + gasoline
Ignition mode CID
Transmission: International fifth gear
Tyres: (Front) 80/100-19, (Rear) 120/90-16 off-road tyres
Frame type: semi-cradle steel tube frame
Suspension system: (Front) 35MM diameter with 180MM travel (Rear) mid-mounted link mechanism with 172MM travel
Braking system: (front) 220MM dual-piston calipers / (rear) 220MM single-piston calipers
Wheelbase: 1330MM
Minimum ground clearance: 280MM
Cushion height: 830mm
Fuel tank capacity: 9L
Vehicle dimensions: 1980X800X1145mm
Packaging dimensions: 1780X480X870 MM, iron frame + cardboard box
Gross weight: 148Kg
