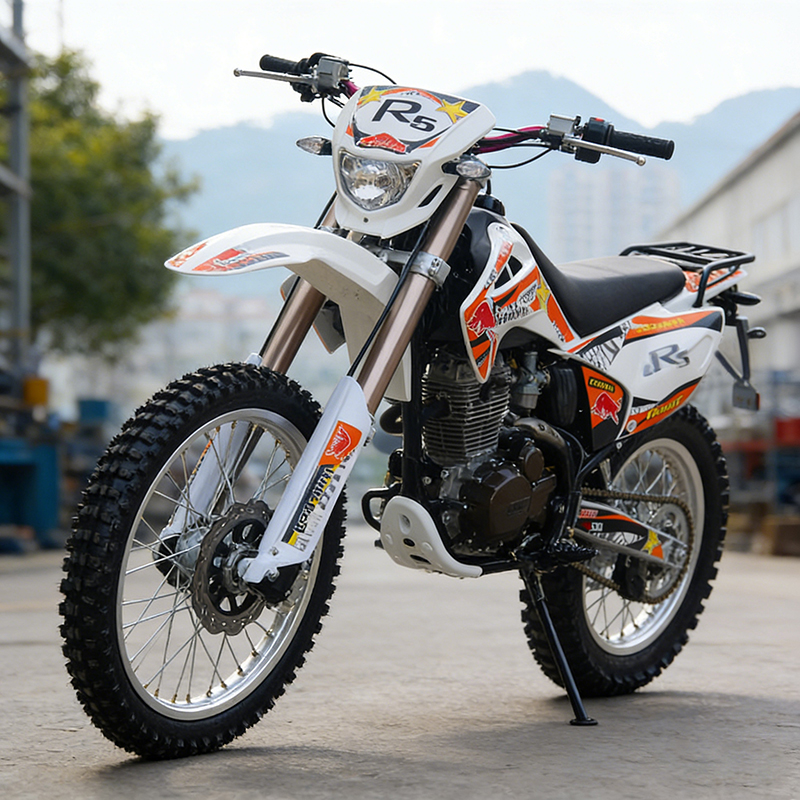

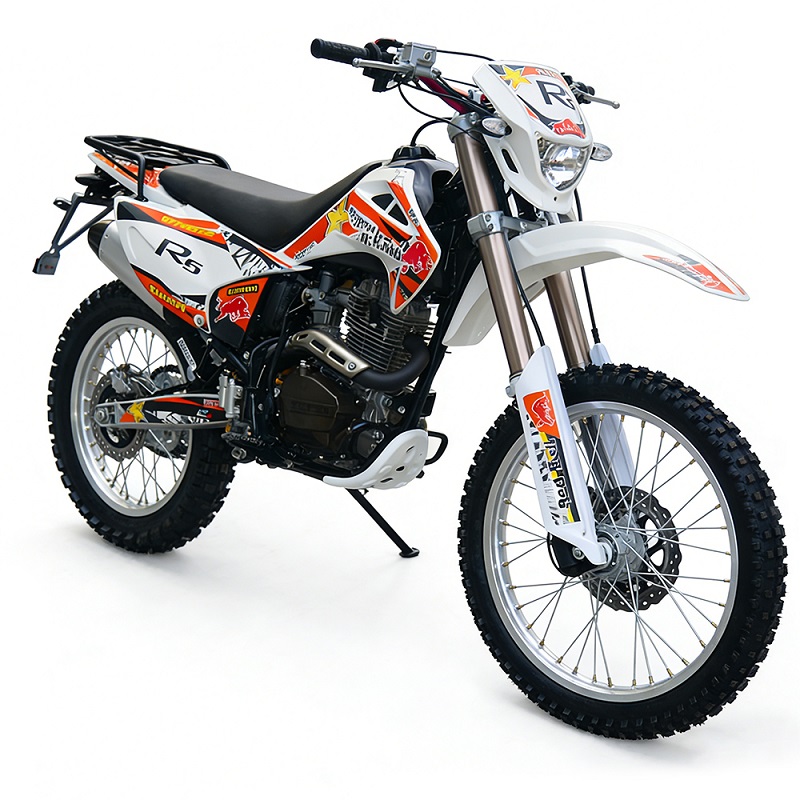

10322 CQR Large Off-road Vehicle

Engine: 250/300CC air-cooled/water-cooled four-stroke
Maximum power: 16kW at 8500rpm
Maximum torque 22N·m at 6500rpm
Starting method: Electric/kick start
Fuel supply method: Carburetor + gasoline
Ignition mode CID
Transmission International fifth gear
Tyres: Front 80/100-21, rear 110/100-18 off-road tyres
Vehicle dimensions: 2030X750X1250mm
Wheelbase 1400mm, seat cushion height 830mm
Minimum ground clearance 330mm
Fuel tank capacity: 9L
Packaging size: 1780X480X870 MM, iron frame + cardboard box
Gross weight: 143Kg
