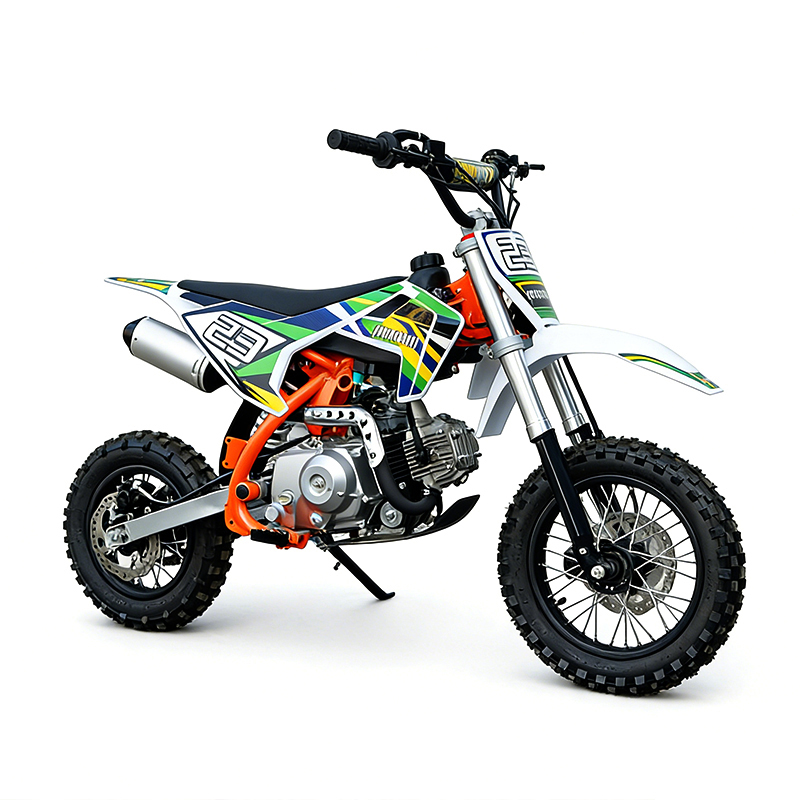

10229 mid-size off-road vehicle
OverView
color：White/Customized Colors
top speed：60 kilometers per hour
engine：Automatic clutch, four-stroke, air-cooled
power：125CC
maximum power：6.2(1士10%)/7000(1士5%)kw/r/min
Maximum Torque：9.0(1±10%)/5000(15%)Nmr/min
Shift mode：Automatic wave
Suspensiontype：Hydraulic suspension
fuel system：PZ22 carburetor
wheelbase：1050MM
Seat height：700MM
qround clearance：230MM
Fuel tank capacity：4.5L
front wheel：2.75-12 off-road tires
rear wheel：3.0-10 off-road tires
Front shock absorber：Inverted non adjustable L=650, fork tube 33mm,
stroke140mm
rear shock absorber：Normal oil pressure L=270, stroke 43mm
wheel hub：Iron ring, die-casting drum core
front brake：Single piston hydraulic brake, 220mm disc brake disc
rear brake：Single piston hydraulic brake, 190mm disc brake disc
exhaust pipe：Fish mouth aluminum exhaust pipe
Net weight：62KG
Gross weight：74KG
vehicle dimensions：1515*730*970MM
Package dimensions：1335*375*820mm
QTY/Container：40 foot high container: 215 pieces
